Load Banks

Standard & Custom Loadbank Solutions in UAE

Gulfincon International LLC is the one of the leading supplier of Load banks in the UAE Market.  Our Dubai & Abudhabi Sales office and rental depot provides standard and custom load bank solutions to our valued customers and end users in the Middle East Market.

Gulfincon Supplies Avatron & FromentLoadbaks – Global Leaders in Power Test & Control, Our range of portable DC load banks provide the most extensive solutions available for testing batteries and chargers. Load banks are available in static versions for permanent installation or movable format with fork lift pocket base, castors or full road going trailers. Larger load banks, typically above 1200kVA, are based on an ISO container construction. Special finishes including custom paint colours and stainless steel casings can be supplied.

Why we Use Load Banks?

• Prevent light load conditions - wet stacking

• Automatic voltage regulator (AVR) and governor set up

• Transient response testing - block loading

• Long term testing - heat runs

• Battery discharging

• Commissioning and verification to ISO8528

• Product research and development

• Product sign off after manufacture

We offers Load Banks Rental Services too in the UAE, Middle East Market.

For More Info: http://www.gulfinconme.com/ or call Ph: +971 4 2588155

Portable Gas Detectors/Monitors/Sensors in UAE

Crowcon provide both single gas and multigas monitors for personal monitoring and portable safety applications providing protection against a wide range of industrial gas hazards. Models vary by size and complexity depending on the number and type of gas sensors used, display and certification but it is Crowcon’s philosophy that each should be properly suited to its task.

Different types of portable gas detectors


T4:-

Portable multigas detector provides effective protection against 4 common gas hazards: carbon monoxide, hydrogen sulphide, flammable gases and oxygen depletion.


Gas-Pro

Crowcon Gas-Pro is a confined space entry monitoring solution for workers and fleet managers, and is now supported by the Crowcon I-Test bump test and calibration station.


Gas-Pro IR

The Gas-Pro IR is ideal for the oil and gas industry. This personal multigas monitor can detect methane, pentane or propane using infrared (IR) sensor technology. The Gas-Pro IR is ideal for detecting potentially explosive gases where traditional, ”pellistor”, catalytic sensors will struggle - especially in a low oxygen environment.


Gas-Pro PID

Gas-Pro PID gives you full flexibility with a wide range of gas types to choose from. With an optional pump, the Gas-Pro PID is the perfect product addressing the requirements of a wide range of applications.

Tetra:3

The Tetra:3 multigas monitor is a compact, robust and easy-to-use diffusion based detector. Single button operation, small size and clear top-mounted display make it a favorite in the market amongst those working in demanding industrial environments, such as those in the water, telecoms, food, brewing or hydrocarbons sectors.


Crown Clip

Reliable and durable fixed life monitoring in a compact and maintenance-free package, the Crowcon Clip has a 2-year life and is available for hydrogen sulphide (H2S), carbon monoxide (CO) or oxygen (O2).


Gasman


The Gasman full function personal single gas monitor is compact and lightweight yet is fully ruggedized for the toughest of industrial environments. Featuring simple single button operation, it has a large easy-to-read display of gas concentration, and audible, visual and vibrating alarms.


Laser Methane mini range

The LaserMethane mini (LMm) is an innovative portable detector that allows methane gas to be detected from a distance. This enables easy access to hard-to-reach locations, such as elevated piping or locked premises, and helps keep the operator away from potential leak sources.


Detective +

Designed for group protection, area monitoring and providing a virtual fenceline, Detective+ is a rugged, interconnecteble, multigas temporary area monitor. Building on Crowcon's experience in pioneering this category of detector, Detective+ has earned a reputation for reliability and versatility in demanding environments stretching from offshore platforms to the sands of the Middle East.


Detective Wireless

Detective Wireless is a module that can replace interconnecting cables for Detective+. detective Wireless will transmit gas alert signals and other alarms wirelessly between Detective units using a 433MHz signal up to 100 metres in distance.

Crowcon Bump & Calibration Gas

With regulations driving tighter calibration routines and the requirement for daily bump testing, there is a real need for test gas. Gas detectors play a key part for people and plant safety so equipment cannot afford to be out of service.

Triple Plus+

Triple Plus+ is the latest generation of the respected "Triple" family of toxic, oxygen and flammable gas detectors. With over 90,000 units sold to oil and gas, chemical, utility and manufacturing companies worldwide, their combination of ruggedness, reliability, ease of use and sensor flexibility has set the standard for multigas portables.

Tetra

Tetra is a flexible multigas monitor for the detection of flammable gases, oxygen and a wide range of toxic gases. Available in rechargeable or disposable battery format and with or without an internal pump, it is used extensively in the utilities, chemicals and hydrocarbon processing markets.


Gulfincon International LLC is the authorized dealer of Crowcon’s gas detectors in Dubai, UAE. If you need fixed or portable gas detectors or monitors in Dubai, UAE please visit our website http://www.gulfinconme.com/

Torque Wrenches Vs Tensioners

Torque wrenches and bolt tensioners are among the most common way of tightening large bolts.

In most cases, bolts wind up under more stress and need to provide more clamping force as the equipment grows more powerful or heavier. When dealing with larger bolts, hydraulic wrenches or tensioners are necessary to tighten bolts to a point that they’ve created sufficient clamping force.

Bolts can provide support to the objects they are clamping; their main purpose is to deliver clamping force. This force comes from the spring tension intrinsic to the tightened bolt. As the bolt is tightened, it undergoes a microscopic stretching. But the bolt’s original make-up includes an elasticity of material that leads it to want to revert to its shape before this stretching occurred. This tension leads to the clamping force, and works to prevent loosening with the help of the friction from the bolt’s threads.

Therefore, guaranteeing and maintaining proper clamping force will ensure that enough spring tension is created in a bolt upon tightening. Torque wrenches and bolt tensioners each create this spring tension by stretching bolts, although they use different methods to get to that goal.

Bolt Tensioners

A bolt tensioner preloads a bolt and stretches it before a nut is installed. The tensioner gets held to the threads of the bolt and pushes against the flange of the surface that is being bolted. By doing this, the tensioner provides a steady amount of stretch to the bolt, thus making sure the bolt receives consistent stretch and clamping force.

There is a downside to using bolt tensioners, in that the user needs to consider a number of factors in selecting a tensioner with each application. This Includes;

• The size of the nut
• The diameter of the bolt
• The thickness of the washer
• The washer diameter
• The bolt grade and load requirement
• The free stud protrusion length

With a tensioner, the amount of bolt stretch is regulated by the hydraulic pressure applied to the tool. Because the bolt will be pre-stretched by the tensioner, the user will need a minimal amount of torque to tighten the nut on the stud. The clamping pressure needed comes from the release of the tensioner, which allows the bolt’s innate elasticity to supply clamping pressure

Torque Wrenches

A torque wrench generates spring tension through the amount of rotational force it applies to a bolt. As the wrench applies this force, the threading pulls the nut face and bolt head close, stretching the bolt and generating clamping force. It’s the most commonly found method of supplying load to a bolt. A large amount of torque is necessary to provide high clamping force. A hydraulic wrench can supply this kind of force.

Torque in hydraulic wrenches is controlled by hydraulic fluid pressure; the higher the pressure, the greater the amount of torque applied to the bolt. Hydraulic fluid does not compress, which means it provides highly consistent and precise torque values.

For the highest potential accuracy when determining torque for a specific application, it is vital to consider a number of other factors that can affect the amount of clamping force applied by a particular level of torque. This includes,

• The number of times the bolt has been used
• The bolt’s cleanliness and finish
• Whether a lubricant has been applied to the threads and the nut face
• Whether flat washers have been used

For more information on bolt tension and tightening torque wrenge, please go through our site www.gulfinconme.com and get a quote

Hydrotest Pumps Supplier

Hydratron manufactures a comprehensive range of Hand operated and Air Driven Liquid Pumps capable of developing pressures in excess of 45,000psi (3100bar). Their compact size, minimal weight and ability to operate in many environments gives them a broad appeal in a wide range of duties, including mobile, fixed and offshore installations.

 Gulf Incon International LLC is the largest supplier of Hydrotest pumps, Gas booster pumps and hydraulic flushing rigs in Dubai, UAE.We are supplying Hydratron’s High pressure equipments. Hydratron is a Global leader in the manufacture of High Pressure Air Driven Liquid Pumps, Gas Boosters and associated Systems.

 The Hydratron range of Standard Hydraulic Power Units (HPU) provides customers looking for pre-engineered and user friendly Liquid Pump systems. These incorporated our full range of Air Driven, Hand Powered and Electric/Petrol driven pump solutions. They are designed for ease of use and to provide for simple connectivity to the inlet and outlet ports.  Additional instrumentation can be installed if required including Stroke Counters, Chart Recorders and Pressure Transducers. On-board tanks can also be integrated if required.

Different series of Liquid pumps are there.

 AZ-1 Series

An Air operated liquid pump for pressure testing, chemical injection and hydraulic power

 AZ-2 Series

An Air operated liquid pump for pressure testing, chemical injection and hydraulic power

Double Acting Series

A Double Acting positive displacement pump with a directly coupled, integral linear reciprocating air motor

Double Head Double Acting Series

A Double air Head Double Acting reciprocating, positive displacement pump

Hand Pump Series

A Hand Powered spring-return positive displacement pump designed to generate High Static Liquid Pressures.

For more info please checkout our site  www.gulfinconme.com and do a call our highly trained staffs will give you a full picture about hydrostatic pumps and get a quote.

Contact  Details :
Tel: +971 4 2588155
Fax: +971 4 2588166
E-mail: gii@eim.ae

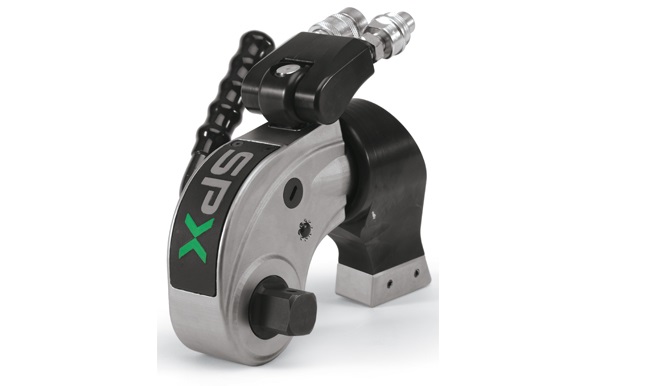

A Beginners’ Guide to Torque Wrenches

There are two main types of hydraulic torque wrench, the Square Drive wrench and the Limited Clearance wrench (also known variously as Low Clearance/ Direct Fit/ Cassette/ Hex Link wrench). The Square Drive wrench drives a socket whereas the Limited Clearance wrench fits directly on the nut. The vast majority of hydraulic torque wrench tool systems are "double-acting" (hydraulic advance, hydraulic return back over the ratchet) although single-acting (hydraulic advance, spring return back over the ratchet) systems are available and whilst few manufacturers/suppliers cater for this option, the single-acting system can bring advantage in terms of cost and on remote, difficult-to-access bolting applications where a power source is not readily available.

The Square Drive wrench is by far the more versatile of the two wrench options in that it will drive any AF size socket with a suitable drive. The Limited Clearance wrench requires a bespoke AF size hex link for each size nut which can make it expensive to assemble a suitable range of equipment for all bolt sizes. With good operating habits, both wrench types are easy and safe to use although the Limited Clearance wrenches are generally more suited to flange work than their Square Drive counterparts.  Given a choice on any bolting job where either wrench type can legitimately be used, I would personally opt for the Limited Clearance wrench as it negates much of the twisting force and reaction challenges often experienced by the Square Drive wrench. Having said that, the Square Drive wrenches find more favour with our customers which is indicative of their much greater versatility and resultant cost effectiveness.

The wrenches are powered by a hydraulic pump. Most Torque Wrenches systems nowadays are designed to work to a maximum pressure of 10,000 psi (710 bar). The pump pressure, as measured by the pump pressure gauge and locked in at the desired rating, dictates the torque output of the wrench. Typically, the pumps are either air or electric powered (usually 110V) although the single-acting wrenches can be powered by any 10,000 psi pump including manual hand pumps.  The wrenches are connected to the pump by a high pressure siamese hose (or single hose for single-acting wrenches) usually around 5m in length although can be any length within reason.

The most commonly used wrenches tend to be 3/4" and 1" Square Drive Wrenches with maximum torque outputs ranging from 1000Nm up to 4,000 Nm and their Limited Clearance counterparts - accommodating nut AF sizes up to 80mm - up to around 5,000 Nm. Beyond these, the Square Drive wrenches ( 1 1/2" and 2 1/2" drives) and Limited Clearance wrenches in most tool ranges accommodate tightening torques up to and in excess of 30,000 Nm for working on large bolts.

Gulf Incon, an authorized dealer of SPX Bolting system in UAE offers hydraulic torque and tensioning systems, industry specific certified training programs, system rentals, and flange management database software etc. If you need more about torque wrenches or bolt tensioners  feel free to contact us and our experts will guide you.
